Nano particle sizing

More Precise. More Flexible. More Reliable.

DLScat is an enhanced particle size measurement solution, which exploits Multiangle Dynamic Light Scattering (MADLS) combined with an intelligent intensity spike filtering algorithm. It determines particle size more accurately and reliably in a large variety of samples, especially those containing contaminants, agglomerates, or polydisperse particles.

Intelligent intensity spike filtering - advanced technology made easy
Intensity spikes in DLS data arise from contaminants or agglomerates. A single spike can be enough to distort a measurement due to its overwhelming magnitude. It will lead to an erroneous large particle size. DLScat effortlessly eliminates these spikes from the scattered light, thereby recovering the undistorted correlation function of the nanoparticles and ensuring precise measurements.

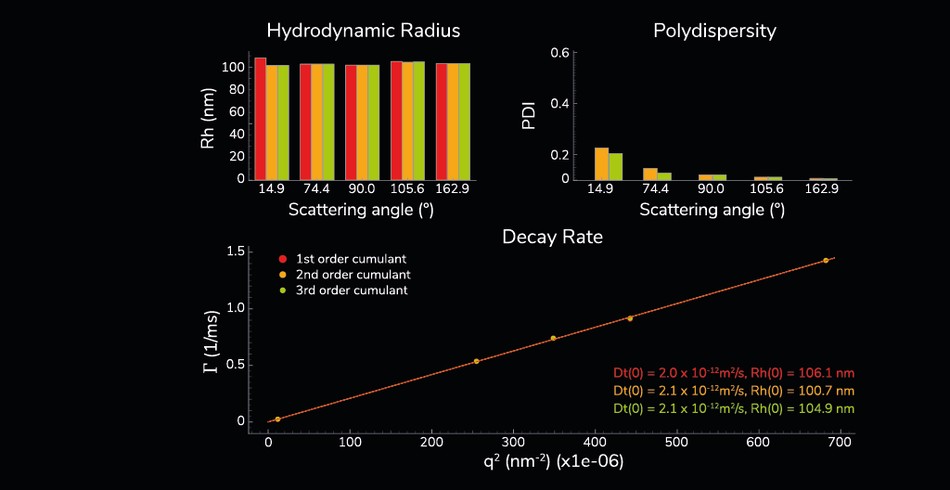

Immediate consistency checks with up to 6 scattering angles
The most stringent method to confirm that a DLS particle size measurement is correct is to check whether the observed particle size is consistent across multiple scattering angles. That is what makes MADLS so powerful. Existing DLS instruments allow to measure only one angle at a time. Therefore, a multi-angle measurement is tedious and time-consuming, preventing users from performing this valuable consistency check. DLScat measures at up to 6 angles in one shot, enabling effortless consistency checks promptly and routinely.

Dynamic Light Scattering (DLS) - Benefits and Challenges

Dynamic Light Scattering (DLS) is a fast, convenient, non-invasive optical method for assessing particle sizes in solution, widely used for sample quality validation. The main limitation of existing DLS systems is susceptibility to large particles such as dust or agglomerates, which bias the apparent particle size towards erroneous larger values. DLScat offers not only a solution for such contaminated samples but also gives you unparalleled control over advanced analysis parameters, allowing you to access the latest capabilities of DLS.

Learn more


Dynamic Light Scattering
Size Range0.3 nm to 10 μm
Scattering Angle15°, 90°, 163° (optionally up to six angles)
AnalysisIntensity Spike Filtering, CONTIN, CUMULANT analysis
Temperature Range0 °C - 100 °C (+/- 0.05 °C)
Minimum Concentration0.1 mg/mL (lysozyme)
Maximum Concentration40 % w/v (sample-dependent)
Minimum Sample Volume4 μL
Maximum Cuvette Size12.5 x 12.5 x 40 mm
Laser Wavelength561 nm or 633 nm (other wavelength available upon request)
Laser Power30 mW (wavelength dependent)
Attenuation Range1 - 10000
DetectorSingle Photon Avalanche Diode
Laser Safety ClassClass 1
Other characteristics
DimensionsL: 485 mm, W: 330 mm, H: 230 mm, weight approx. 16 kg
Digital CommunicationUSB 2.0 Type C connection
CorrelatorTime Tagger, auto- and cross-correlation
ComputerWindows 10/11 (included upon request)
SoftwareGraphical user interface and API available
Dynamic Light Scattering
Size Range
0.3 nm to 10 μm
Scattering Angle
15°, 90°, 163° (optionally up to six angles)
Intensity Spike Filtering, CONTIN, CUMULANT analysis
Temperature Range
0 °C - 100 °C (+/- 0.05 °C)
Minimum Concentration
0.1 mg/mL (lysozyme)
Maximum Concentration
40 % w/v (sample-dependent)
Minimum Sample Volume
4 μL
Maximum Cuvette Size
12.5 x 12.5 x 40 mm
Laser Wavelength
561 nm or 633 nm (other wavelength available upon request)
Laser Power
30 mW (wavelength dependent)
Attenuation Range
1 - 10000
Single Photon Avalanche Diode
Laser Safety Class
Class 1
Other characteristics
L: 485 mm, W: 330 mm, H: 230 mm, weight approx. 16 kg
Digital Communication
USB 2.0 Type C connection
Time Tagger, auto- and cross-correlation
Windows 10/11 (included upon request)
Graphical user interface and API available
DLScat Applications
  • life sciences
  • food industry
  • beauty industry
  • pharma industry
  • nanotechnology
  • nanoparticles
  • micelles
  • colloids
  • vesicles
  • proteins
Are you searching for a custom-built DLS device?

Do you need a certain wavelength, want to measure at a specific angle, or include a special analysis algorithm? Our modular DLS system enables us to accommodate your experimental demands. We'd love to learn about your wishes.

Contact our DLS team
